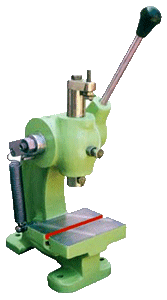

SPRING CONTROLLED ARBOUR PRESSES
|
| |
| The special features are as under : |
- The stroke is adjustable
- There is adjustable spring tensioning
device
- Automatic spring return of spindle
- T - Slotted base surface
|
| The press solid, hollow and eyelet reiveting,
flatting numbering, marking, assembling etc. hence it is extremely
useful in all light engineering industries be like electronic
and electrical control equipment, domestic appliances, radios,
battery cells, metering equipment, cycles, office equipments,
ammunition, small tools automobile ancillaries etc. |
| BODY |
: |
Made from solid cast Iron |
| RAM & PINION |
: |
Made from carbon steel or EN 8 Steel |
|
|
 |
|
|
| |
| |
| SPECIFICATIONS |
| |
MODEL NO. |
|
SAP - 0 |
SAP - 1 |
SAP - 2 |
| Maximum Pressure
Exerted |
Tons
Kg.
|
1/4
250
|
1/2
500
|
3/4
750
|
| Center to Back |
Inch
MM
|
2
50
|
2.3/4
70
|
3.3/4
85
|
| Minimum Height from Base to
Guide |
Inch
MM
|
1.1/2
38
|
3.3/4
70
|
6.1/4
158
|
| Maximum Height Arbour Plate
to Guide |
Inch
MM
|
2.3/4
70
|
5.1/2
140
|
10.1/4
260
|
| Size of Arbour Round or Square |
Inch
MM
|
1.1/8
28
|
1.3/8
35
|
1.1/2
38
|
| Size of 'T' Slot |
Inch
MM
|
1/2
12
|
1/2
12
|
1/2
12
|
| Hole in Ram |
Inch
MM
|
3/8
10
|
1/2
12
|
1/2
12
|
| Approx Weight |
Kg.
|
15
|
25
|
45
|
|
| |
|
| |
| |
|
